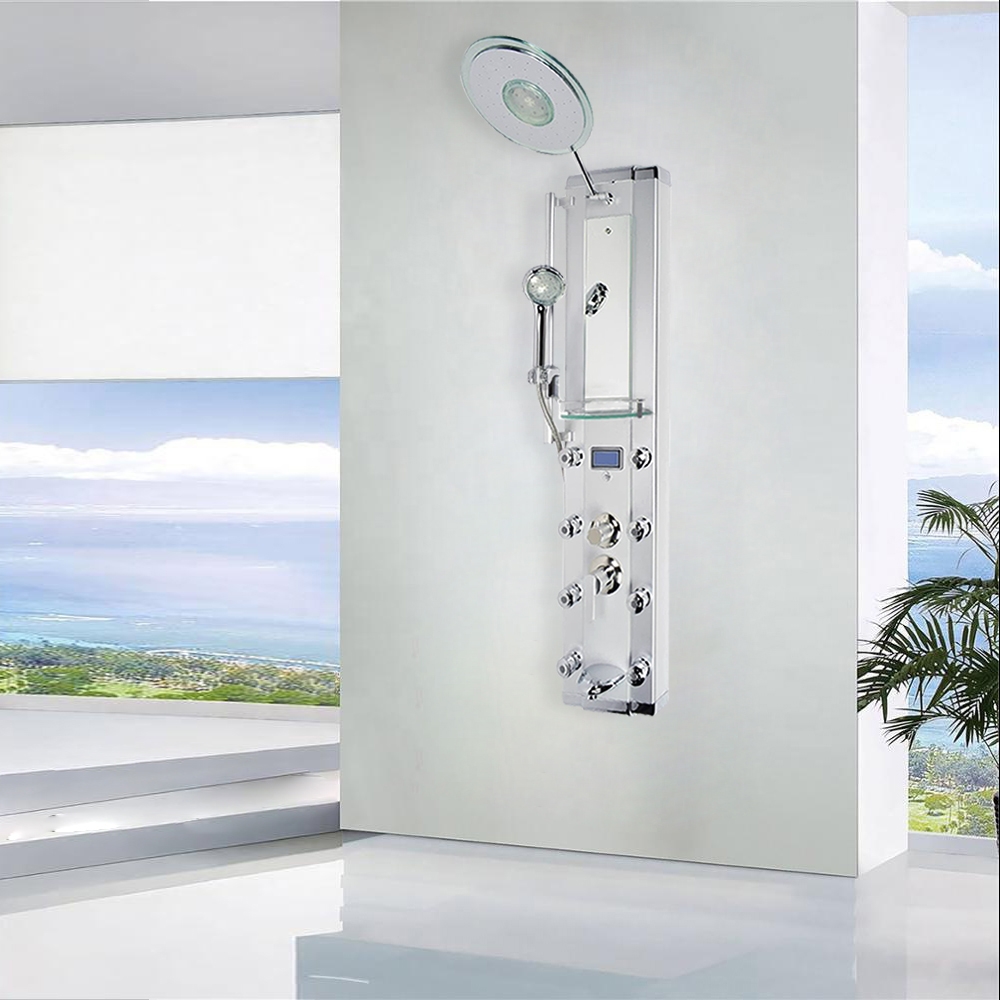

New Aluminum Stainless Steel Shower Head Massage Shower Panel
Our aluminium shower head shower panel is a multifunctional shower panel that offers everything needed for a delightful shower experience. It comes with a rainfall above head shower, multiple massage nozzles for a refreshing feeling and a convenient easy to use hand held shower head.This contemporary design complete shower massage system is equipped with body adjustable jets, rain fall shower head, elegant hand shower with adjustable sliding rail, thermostatic valve, built-in volume control and transfer valve, 4-way water diverter and more All the functions are controlled by a multi functional key. All of the shower panels feature water saving fittings, to ensure that an optimized flow of water is maintained while avoiding unnecessary wastage of energy and water. Our shower panels are very easy to install and the reciprocal of this means that at the end of their life, they can also be easily uninstalled and materials recovered for recycling.It comes complete with accessories and installation instructions.
Technical Details
Series: Body Shower
- Finish: Visible plumbing fixtures in chrome finish
- Material: Anodized aluminum body with Satin Chrome Panel Finish
- Dimension: 130x26x7.5 (51"H x 10.5"W x 3" )
- Control Valve: Pressure balance control
- Overhead Shower: Rain Style Overhead Shower
- Number of Jets: 6
- Jet Style: Fog
- Minimum Operating Pressure: 28 psi
- Maximum Operating Pressure: 72 psi
- Included: a rainfall shower overhead, a glass shelf, a mirror, 6 fog jets, a handheld shower & tub spout.
1 Year parts warranty against manufacture defect. replacement part will be shipped to you only, No labor cost will be covered.
|
|
BathSelect� Manufacturer Warranty Information
 Installation Instructions for Fontana Aluminum Shower panel
Installation Instructions
Product is design for installation into existing shower systems without the need to destroy your wall
(Shower system is compatible with new construction)
- Remove currently installed fixtures from shower system (hot and cold water knob(s))
- Install two installation brackets onto the wall(Panel installs at desired height / all hardware is included)
- Connect the hot and cold water hook-ups
(All plumbing is standard 1/2")
- Hang the shower system on the previously installed brackets
- Test shower system to ensure the product is working properly
- Caulk around the edges of the unit
(This is only required on some models)
-
Enjoy the relaxing experience the Shower Panel has to offer!
Total Estimated Installation Time
30 Minutes to 1 Hour
Shower panel gives you a better shower experience than just using a conventional shower head. You will be able to rinse faster than ever before, while receiving the benefits of a massage and acupressure - Oriental technique applying pressure to specific "pressure points" on the body to improve the flow of energy. The panel is made from special acrylic and reinforced with fiberglass in the back. The acrylic used resists fading and discoloration and is easy to clean. Overall the panel is very durable and will serve you well for many years. The jets can be easily removed for cleaning -- just unscrew the tension rings.
|
|
|
 |
|
 |
|
