A Structured Framework for Hospitality Bathroom Specifications
A well-prepared bathroom-fixture specification does more than identify an attractive faucet, shower system, bathtub, basin, vanity, mirror, accessory, or touchless fixture. It establishes measurable requirements that allow the architect, interior designer, plumbing engineer, contractor, procurement team, installer, owner, and facility operator to understand what must be provided and how the completed installation will be evaluated.
In luxury hotels, resorts, branded residences, private clubs, wellness properties, and architect-led developments, fixture specifications also support design consistency across guestrooms, suites, public restrooms, spa areas, food-and-beverage spaces, and back-of-house facilities. The specification should connect the visual design intent with plumbing requirements, finish schedules, approved-submittal procedures, installation tolerances, testing, maintenance access, replacement-part planning, and final turnover documentation.
This page provides a practical organizational framework for developing project-specific CSI-style bathroom-fixture specifications. It is intended as a planning and coordination resource rather than a substitute for the architect’s, engineer’s, code consultant’s, or specification writer’s final project documents.
Figure 2. Fixture schedules, finish schedules, plumbing drawings, and interior elevations should identify the same coordinated product configuration.
General
Defines administrative and procedural requirements, references, coordination responsibilities, quality-assurance expectations, submittals, samples, delivery, storage, warranties, and closeout documentation.
Products
Describes acceptable products, fixture types, performance criteria, materials, internal components, finishes, accessories, controls, trim, mounting conditions, and fabrication requirements.
Execution
Addresses examination, preparation, installation, alignment, sealing, field coordination, adjustment, cleaning, testing, protection, demonstrations, and correction of deficient work.
Define the Section Scope Before Writing Product Requirements
The first specification decision is determining what belongs in the bathroom-fixture section and what must remain in related sections. Hospitality bathrooms frequently involve overlapping architectural, plumbing, electrical, millwork, stone, waterproofing, lighting, controls, and interior-finish responsibilities. Unclear scope boundaries can create duplicated work, omitted accessories, incorrect rough-ins, incompatible finish selections, or disputes over who furnishes and installs each component.
The section scope should clearly identify whether it includes faucets, shower systems, thermostatic valves, diverters, hand showers, body sprays, tub fillers, bathtubs, basins, sinks, vanities, mirrors, accessories, drains, touchless controls, automatic soap dispensers, mounting hardware, trim plates, supply hoses, transformers, power supplies, control modules, remote reservoirs, and specialty components.
Coordination Principle
Every specified fixture should have a corresponding location, mounting condition, finish designation, rough-in requirement, and installation responsibility shown elsewhere in the construction documents.
Common Related Sections
- Cast-in-place concrete and structural blocking
- Metal framing and support assemblies
- Architectural woodwork and custom vanities
- Waterproofing and tile-setting systems
- Natural stone and engineered stone countertops
- Plumbing piping, valves, traps, and supplies
- Electrical power, transformers, and low-voltage wiring
- Lighting, illuminated mirrors, and control systems
- Sealants and perimeter joint treatments
- Toilet, bath, and washroom accessories
- Testing, adjusting, commissioning, and closeout
Summary of Work
Identify the fixture categories, trim components, controls, mounting hardware, accessories, specialty items, and manufacturer-furnished components included in the section.
References
List only the standards directly applicable to the specified work and verify the adopted edition with the project jurisdiction, code consultant, engineer, and authority having jurisdiction.
Definitions
Clarify project-specific terminology such as exposed trim, concealed valve, coordinated collection, control module, thermostatic control, remote reservoir, or owner-furnished component.
Coordination
Require verification of rough-in dimensions, wall thickness, countertop openings, supply locations, drains, access panels, power sources, blocking, clearances, and adjacent finish conditions.
Preinstallation Meetings
Use meetings for complex suites, multi-outlet shower systems, specialty tubs, concealed controls, touchless fixtures, illuminated mirrors, or repeated prototype guestrooms.
Warranty Requirements
Identify required warranty documentation, start date, coverage boundaries, finish exclusions, electronic-component provisions, and procedures for obtaining replacement parts or service support.
SUBMITTAL REQUIREMENTS
Require Complete, Coordinated Product Submittals
A product-submittal requirement should describe the information needed for meaningful review. A catalog page alone may not show concealed valve bodies, mounting brackets, control boxes, hose connections, transformers, drains, deck adapters, trim plates, remote reservoirs, service clearances, or required accessories.
For each scheduled fixture, request a coordinated package that identifies the exact model, configuration, finish, dimensions, flow characteristics, connection sizes, mounting method, concealed components, power requirements where applicable, and accessories necessary for a complete installation.
- Manufacturer and product designation
- Fixture dimensions and critical rough-in dimensions
- Material and construction information
- Finish name, finish code, and approved sample reference
- Water-supply and drainage connection requirements
- Flow-control, valve, cartridge, and control information
- Electrical or battery requirements for powered fixtures
- Mounting hardware and support requirements
- Maintenance access and service-component locations
- Installation instructions and operating documentation
Recommended Bathroom Fixture Submittal Matrix
|
Submittal Item
|
Purpose
|
Typical Information
|
Primary Reviewer
|
|
Product Data
|
Confirms selected product and performance.
|
Models, dimensions, materials, flow, connections, controls, accessories.
|
Architect and engineer
|
|
Shop Drawings
|
Coordinates custom or multi-component assemblies.
|
Layouts, mounting, supports, access, wiring, piping, clearances.
|
Architect, engineer, contractor
|
|
Finish Samples
|
Verifies color, sheen, texture, and coordination.
|
Actual finish sample, labeled reference, approved control sample.
|
Architect and interior designer
|
|
Coordination Drawings
|
Resolves interface with adjacent work.
|
Countertops, millwork, wall build-up, plumbing, power, access panels.
|
Construction team
|
|
Certificates
|
Documents required compliance or testing.
|
Applicable listings, certifications, declarations, or reports.
|
Engineer and code consultant
|
|
Closeout Data
|
Supports operation, maintenance, and future replacement.
|
Manuals, warranties, parts lists, finish-care instructions, record data.
|
Owner and facility team
|
Manufacturer Qualifications
Request documentation appropriate to the product type, project scale, service requirements, and required technical support.
Installer Qualifications
Require installers familiar with concealed valves, specialty mounting, finish protection, electronic controls, and manufacturer instructions.
Control Samples
Retain approved finish samples or prototype fixtures as the visual standard for production deliveries and final inspection.
Mockups
Use prototype guestrooms or bathroom mockups to confirm fixture placement, reach, clearances, spray patterns, finish coordination, and service access.
Preinstallation Review
Review rough-in conditions before closing walls, setting countertops, completing waterproofing, or installing expensive finish materials.
Source Consistency
Where visual consistency is important, coordinate exposed fixtures within each room type, public area, or finish family.

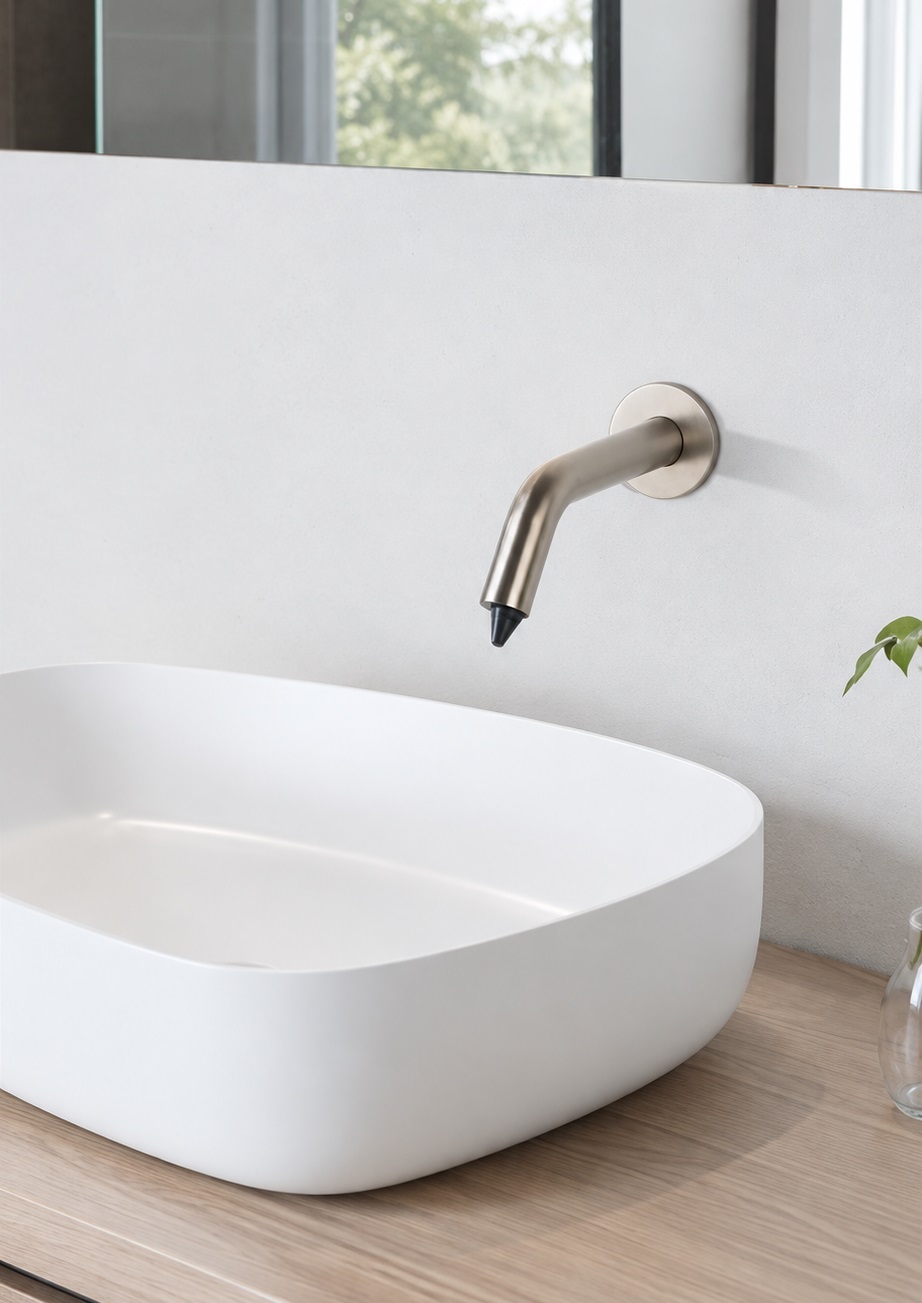

Delivery, Storage, Handling, and Finish Protection
Decorative hospitality fixtures may pass through several handling stages before installation. Products can be damaged through moisture exposure, open-site storage, mixed-room packaging, impact, abrasive cleaning, fingerprints on unprotected finishes, loss of small components, or premature removal of protective coverings.
The specification should require products to remain in labeled protective packaging until the installation area is ready. Packaging should allow each fixture to be traced to its scheduled room type, finish, model, and component set. Concealed bodies and exposed trim should be coordinated so that parts are not installed in incompatible locations or separated from their intended assemblies.
Inspect at Delivery
Check quantities, labels, finish designations, visible damage, and package condition.
Store in Dry Areas
Protect products from weather, construction moisture, dust, chemicals, and impact.
Maintain Room Labels
Keep complete assemblies organized by room, floor, area, or fixture schedule mark.
Protect Exposed Finishes
Do not use adhesive tapes, abrasive wrapping, or incompatible protective materials.
Fixture Type and Configuration
State whether the fixture is deck-mounted, wall-mounted, floor-mounted, concealed, exposed, single-control, dual-control, thermostatic, pressure-balancing, touchless, electronically controlled, or mechanically operated.
Complete Assembly
Identify cartridges, valve bodies, handles, trim, escutcheons, spouts, spray devices, hoses, brackets, supplies, adapters, mounting hardware, control modules, drains, and accessories.
Performance Criteria
Specify project-appropriate flow, operating pressure, temperature control, spray function, detection range, response, drainage, overflow, or load requirements where relevant.
Materials
Describe exposed and concealed material requirements at a level appropriate to the fixture type, water conditions, installation environment, finish system, and maintenance program.
Connections and Interfaces
Identify supply sizes, thread or connection types, drain interfaces, power requirements, transformer needs, control wiring, remote-reservoir tubing, and access provisions.
Serviceability
Require reasonable access to cartridges, filters, batteries, sensors, solenoids, transformers, control modules, aerators, spray outlets, hoses, drains, and adjustment points.
Product Categories Commonly Addressed in Hospitality Bathroom Specifications
Lavatory Faucets
Deck-mounted, wall-mounted, widespread, single-control, dual-control, vessel, touchless, and coordinated basin applications.

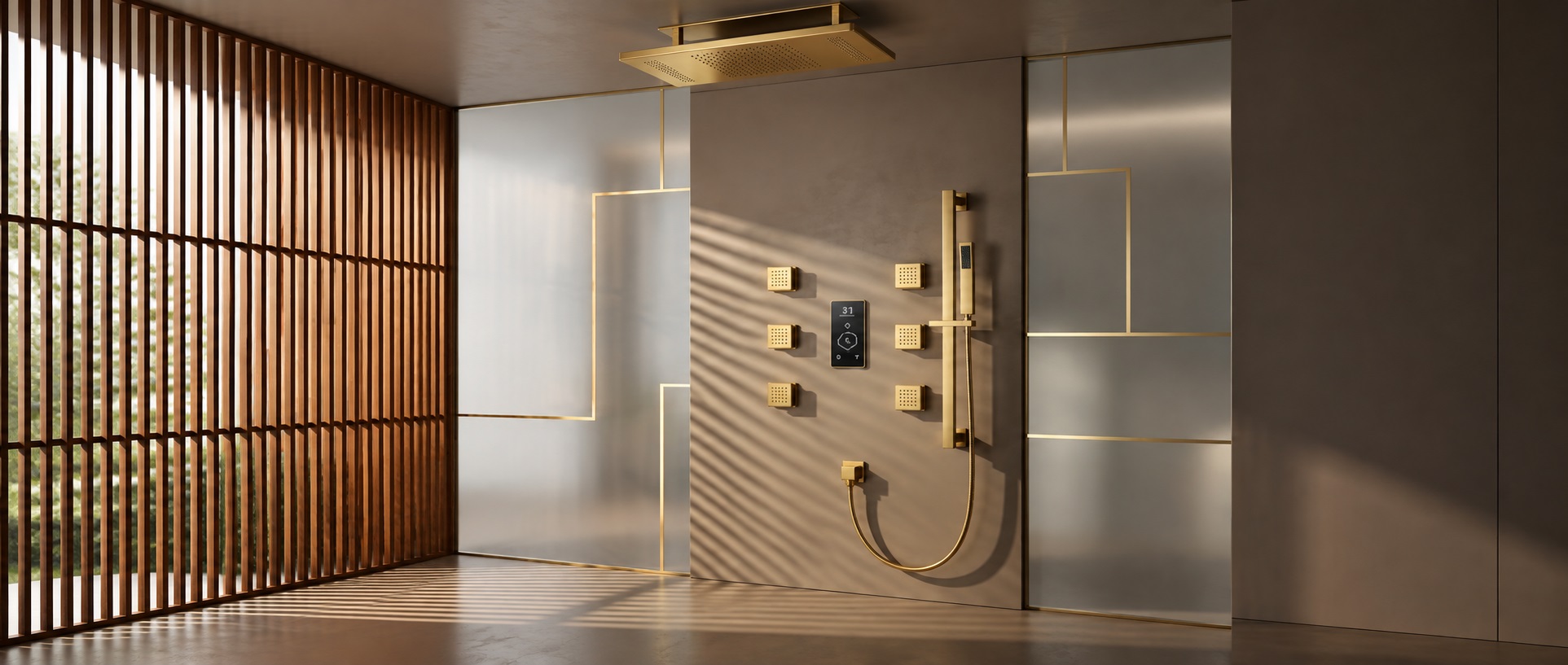

Shower Systems
Valves, diverters, rain heads, hand showers, body sprays, wall outlets, hoses, rails, brackets, and control trim.
Bathtub Fittings
Deck-mounted fillers, floor-mounted fillers, wall-mounted fillers, hand showers, waste-and-overflow assemblies, and drains.
Basins and Sinks
Undermount, vessel, integrated, wall-mounted, pedestal, countertop, and specialty hospitality configurations.
Vanities and Casework
Factory-fabricated or coordinated vanity assemblies, support framing, countertops, basins, hardware, and access panels.
Mirrors and Lighting
Framed mirrors, illuminated mirrors, defogging functions, integrated controls, mounting systems, and electrical coordination.

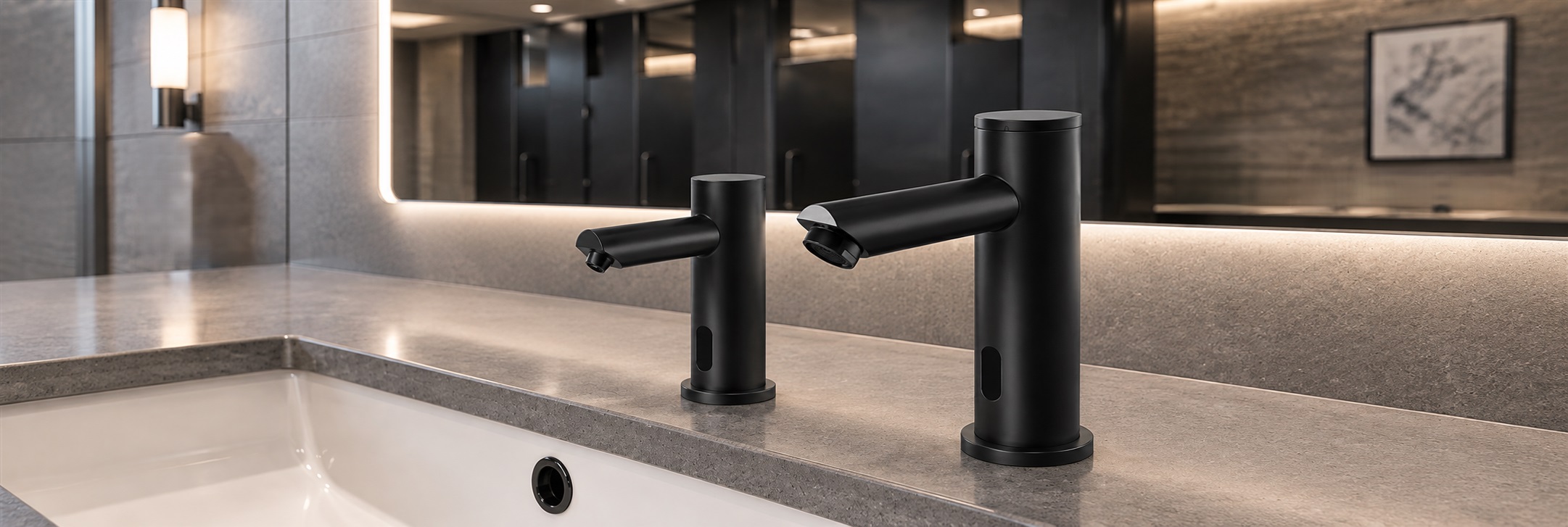

Touchless Fixtures
Sensor faucets, automatic soap dispensers, controllers, solenoids, batteries, transformers, reservoirs, and power accessories.
Bathroom Accessories
Towel bars, robe hooks, shelves, paper holders, grab bars, dispensers, drains, and coordinated exposed hardware.

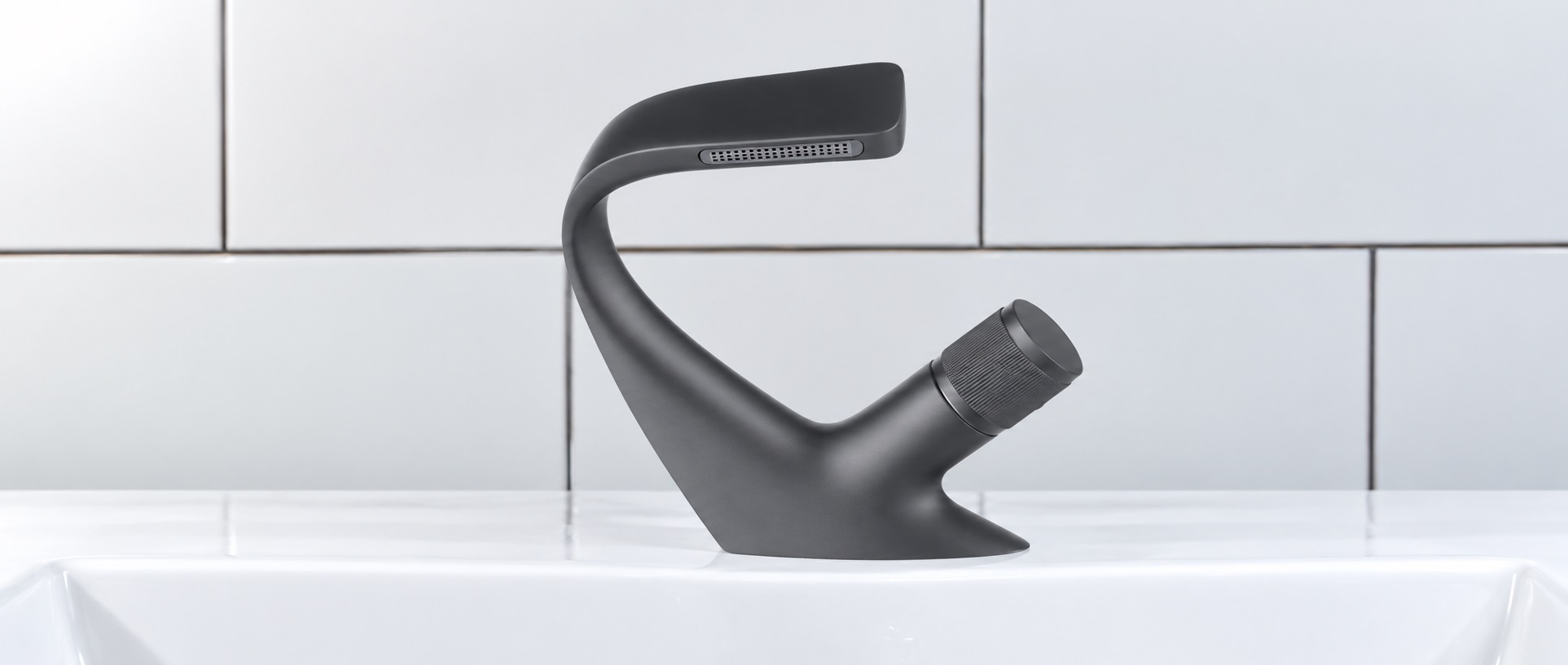

MATERIAL REQUIREMENTS
Specify Materials According to Function and Exposure
Material requirements should reflect the fixture’s function, location, exposure, water contact, cleaning program, finish system, structural role, and maintenance needs. Avoid relying only on general terms such as premium, heavy duty, commercial grade, or high quality unless those terms are supported by measurable requirements.
Different parts of a fixture may require different materials. The visible spout, concealed valve body, mounting plate, cartridge, hose, spray face, handle, drain assembly, electronic enclosure, fasteners, and flexible connections should not automatically be assumed to use the same material.
Where material composition affects regulatory compliance, corrosion resistance, structural performance, potable-water contact, or compatibility with the finish system, require supporting product data or applicable documentation.
Material Review Checklist
- Exposed body and trim material
- Concealed valve-body construction
- Cartridge and sealing components
- Fasteners and mounting brackets
- Flexible hose and connection materials
- Spray-face and outlet materials
- Electronic housing and moisture protection
- Countertop, basin, tub, or vanity materials
- Compatibility with cleaning products
- Compatibility with project water conditions

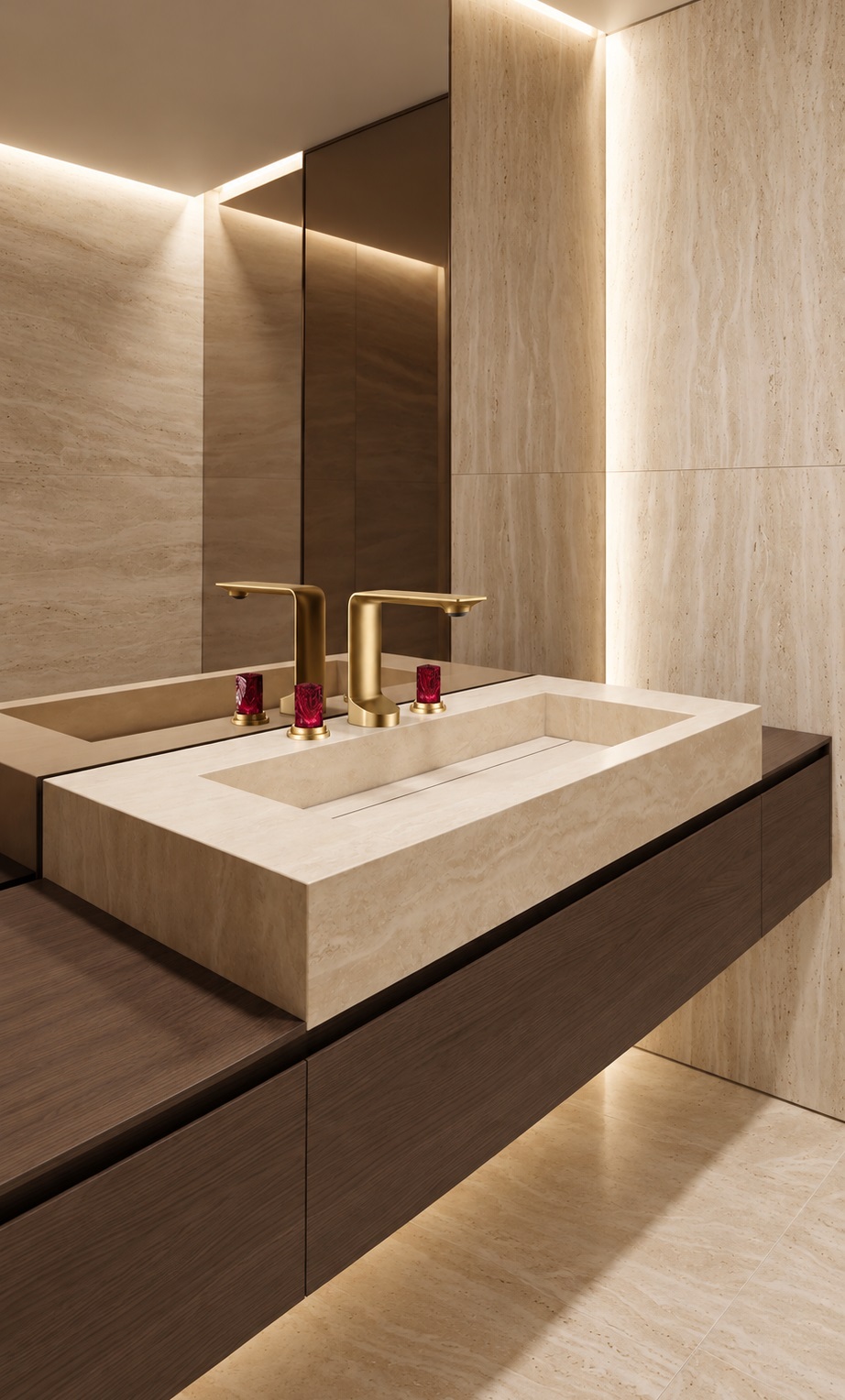

Finish Identification
State the manufacturer’s exact finish name, designation, and approved sample reference.
Sample Size
Request a sample large enough to evaluate color, reflectivity, texture, grain, and directional appearance.
Variation
Define the acceptable visual range when natural, brushed, plated, coated, or hand-applied finishes can vary.
Cleaning Compatibility
Coordinate the approved cleaning method with the finish-care instructions and hotel housekeeping program.
Batch Coordination
Where practical, coordinate exposed products by room type, area, finish family, and procurement phase.
Control Sample
Retain the approved sample or mockup as the comparison standard for delivered and installed work.

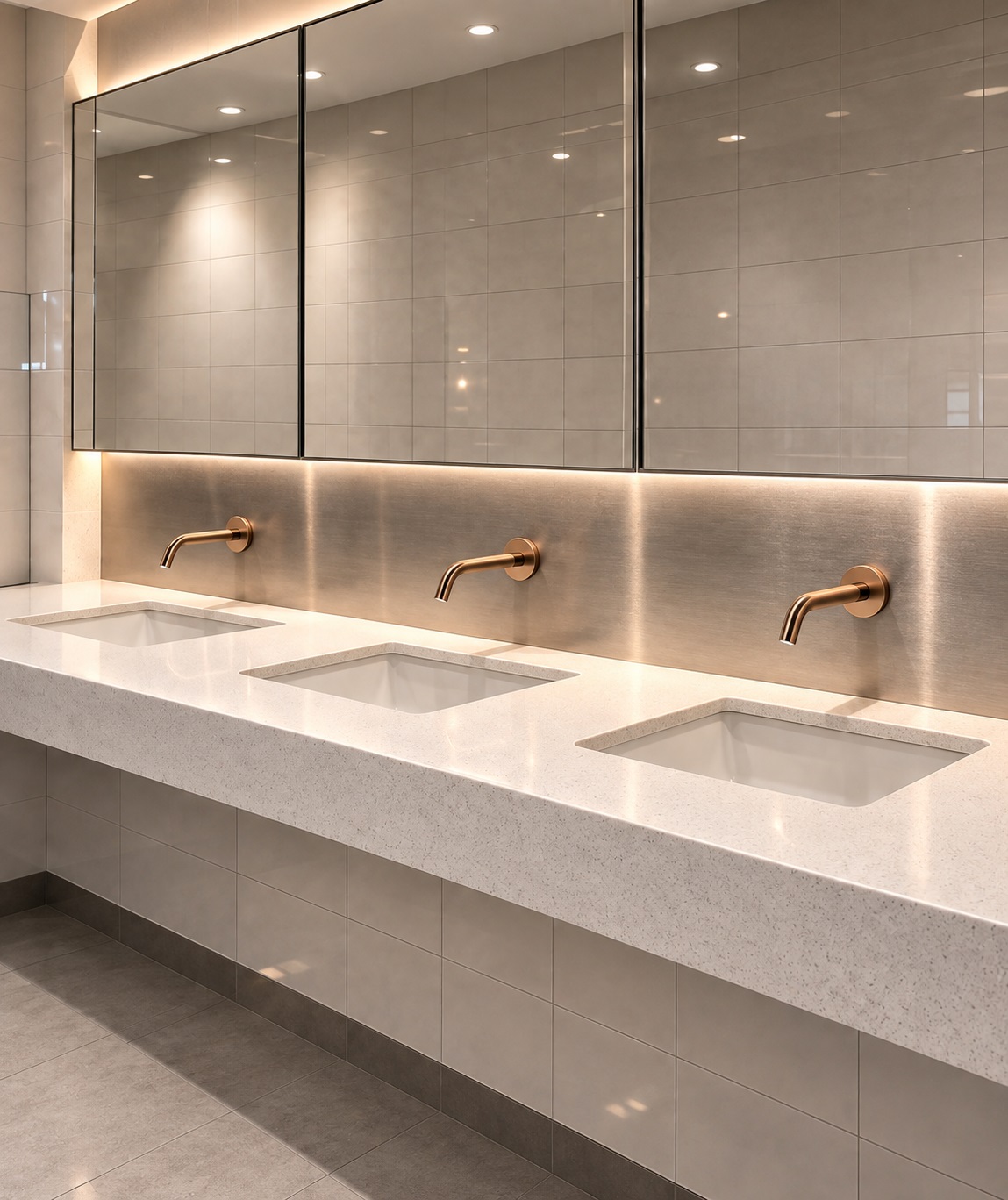

ACCESSIBILITY AND REGULATORY COORDINATION
Coordinate Product Selection with Applicable Project Requirements
Accessibility, plumbing, electrical, energy, water-efficiency, safety, and product-compliance requirements vary by jurisdiction, project type, installation location, and adopted code edition. The final specification should identify only the requirements that have been verified as applicable to the project.
Product compliance does not by itself guarantee that the completed installation is compliant. Mounting height, reach range, clear floor space, knee clearance, control location, operating force, projection, temperature limit, and surrounding construction must also be coordinated in the drawings and field installation.
Specification Review Note
Require the contractor to submit applicable documentation without using broad statements such as “meets all codes.” Each cited requirement should be traceable to a product characteristic, report, listing, certificate, or installation condition.
Examination
Verify substrates, blocking, openings, rough-ins, supplies, drains, power, waterproofing, finished-wall thickness, access, and adjacent construction before installation.
Preparation
Flush piping where appropriate, clean mounting surfaces, confirm opening dimensions, protect finishes, and resolve unacceptable conditions before proceeding.
Installation
Install fixtures level, plumb, aligned, securely supported, properly sealed, accessible for service, and consistent with approved submittals and instructions.
Field Coordination
Coordinate with countertops, millwork, stone, tile, waterproofing, plumbing, electrical, lighting, mirrors, accessories, and finish installations.
Adjustment
Adjust handles, valves, temperature limits, sensors, flow controls, spray direction, drains, doors, drawers, lighting, and accessories as applicable.
Testing and Inspection
Test operation, leakage, drainage, water delivery, temperature response, sensors, power supplies, controls, and accessory functions.
Cleaning
Use manufacturer-compatible cleaning materials and remove labels, debris, sealant residue, fingerprints, mineral residue, and construction contamination.
Protection
Protect installed fixtures from impact, construction dust, abrasive materials, unauthorized use, chemical exposure, and damage before turnover.
Critical Installation Coordination Points
- Rough-In Depth: Coordinate concealed bodies with framing, waterproofing, substrate, tile, stone, panels, and final finish thickness.
- Countertop Openings: Confirm drilling templates, center spacing, edge clearances, basin geometry, support, and access below the deck.
- Fixture Alignment: Align spouts, handles, spray devices, basins, drains, mirrors, accessories, and architectural centerlines.
- Waterproofing: Coordinate penetrations, seals, sleeves, trim plates, wall outlets, and fasteners with the waterproofing system.
- Service Access: Maintain access to valves, cartridges, filters, solenoids, transformers, control modules, connections, and shutoffs.
- Power Coordination: Verify voltage, transformer location, battery access, receptacles, wiring pathways, and required separation from wet areas.
- Drainage: Confirm drain-body compatibility, overflow conditions, trap alignment, slope, waterproofing, and serviceability.
- Finish Protection: Complete abrasive work before exposing decorative trim and use compatible cleaning and protection methods.

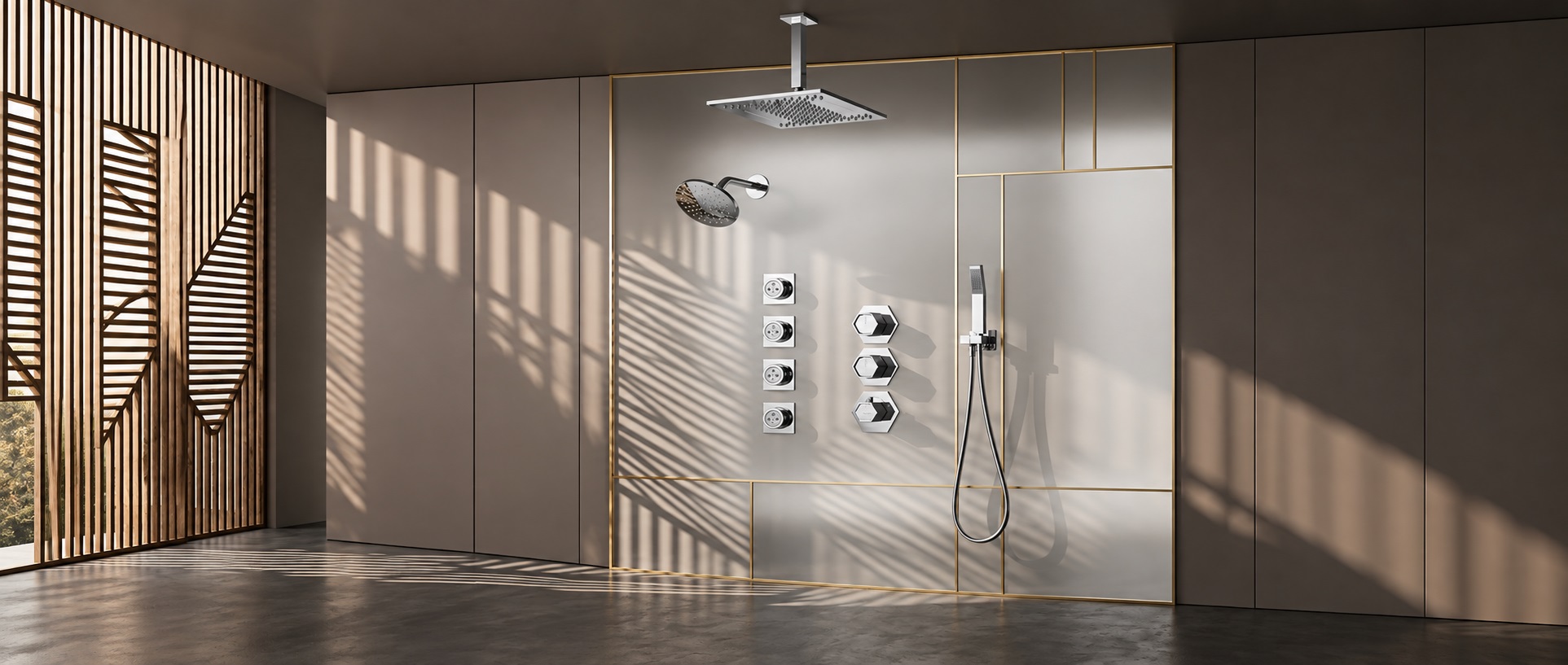

Leak Inspection
Inspect supply connections, valve bodies, hoses, spouts, drains, traps, seals, and concealed interfaces.
Operating Controls
Verify handle movement, cartridge operation, diverters, shutoffs, temperature controls, and user interfaces.
Water Delivery
Confirm flow, spray distribution, outlet sequencing, directional control, and absence of unintended discharge.
Drainage
Verify basins, tubs, shower areas, overflow components, drains, and surrounding surfaces drain as intended.
Sensor Functions
Test detection, activation, shutoff, dispensing, power loss response, and access to service components.
Finish Inspection
Check for scratches, discoloration, tool marks, residue, mismatched components, visible sealant, and damage.
OPERATIONS AND MAINTENANCE
Plan for Cleaning, Service, Replacement Parts, and Facility Operations
A fixture specification should consider the team that will maintain the property after construction. Luxury hospitality finishes may require specific cleaning methods, while concealed valves, electronic controls, remote soap reservoirs, filters, cartridges, hoses, aerators, spray outlets, and batteries require planned access and documented service procedures.
Require operating and maintenance information to be organized by fixture type and room application. The owner should be able to identify the installed model, finish, replaceable component, service method, recommended cleaning procedure, and source for replacement parts without reconstructing the original procurement history.
- Product identification and installed locations
- Approved cleaning materials and prohibited chemicals
- Routine inspection and preventive-maintenance guidance
- Cartridge, filter, sensor, battery, and solenoid access
- Adjustment and troubleshooting procedures
- Replacement-part schedules and ordering information
- Warranty procedures and service contact information
- Recommended owner stock of critical components
Record Product Schedule
List installed products by room type, area, model, finish, quantity, and relevant fixture-schedule designation.
Approved Submittals
Include final reviewed product data, drawings, finish selections, certificates, and approved deviations.
Operating Manuals
Provide installation, adjustment, operating, cleaning, maintenance, and troubleshooting instructions.
Warranty Documents
Organize warranties by product category and identify coverage dates, procedures, exclusions, and contacts.
Extra Materials
Provide specified spare cartridges, filters, aerators, batteries, sensors, trim components, finish samples, or specialty tools.
Training and Demonstration
Demonstrate operation, adjustment, cleaning, shutdown, maintenance access, and replacement of service components.
Product Data
Submit product data for each fixture, fitting, accessory, control, and exposed trim component. Identify model, configuration, dimensions, materials, finish, connections, mounting, flow characteristics, power requirements, service access, and accessories required for a complete installation.
Finish Samples
Submit actual samples of exposed finishes for each specified finish family. Label samples with manufacturer, finish name, finish designation, substrate where relevant, and product categories represented by the sample.
Coordination

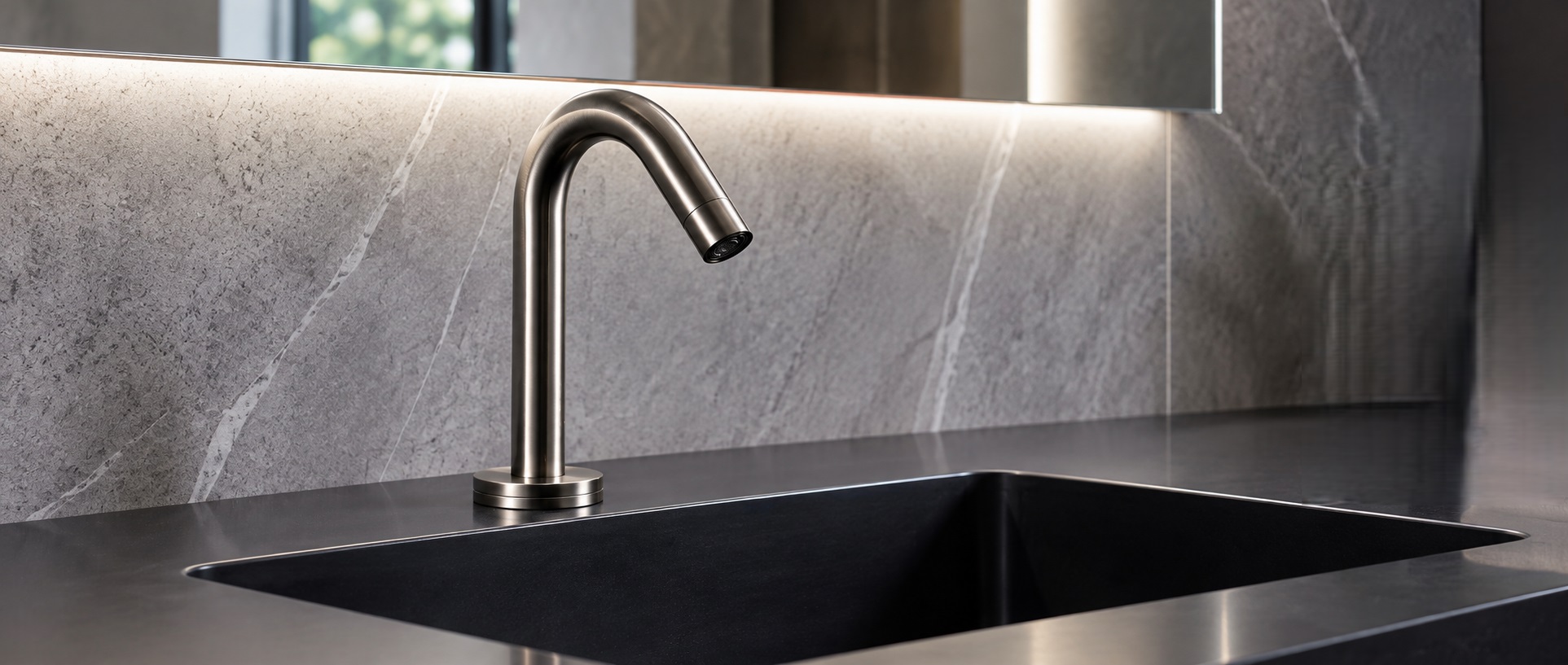

Coordinate fixture locations, rough-in dimensions, mounting heights, wall and deck openings, blocking, supports, power, water supplies, drainage, access panels, waterproofing, finished-wall thickness, and adjacent finish construction before fabrication or installation.
Installation
Install fixtures in accordance with approved submittals and written instructions. Set work level, plumb, aligned, securely supported, properly sealed, free of strain at connections, and accessible for inspection, adjustment, maintenance, and replacement.
Testing
Operate each fixture and inspect for leakage, correct water delivery, drainage, control response, temperature adjustment, sensor function, stability, alignment, finish condition, and proper operation of accessories.

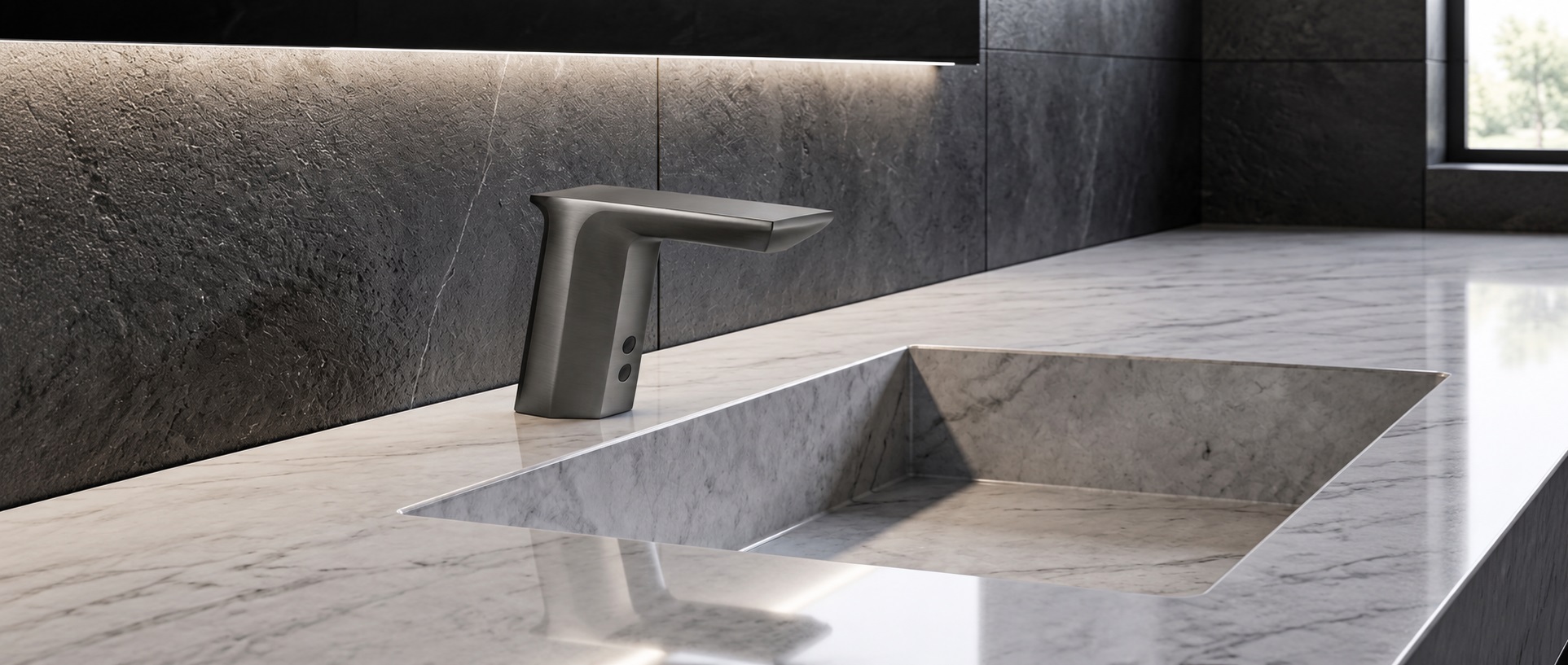

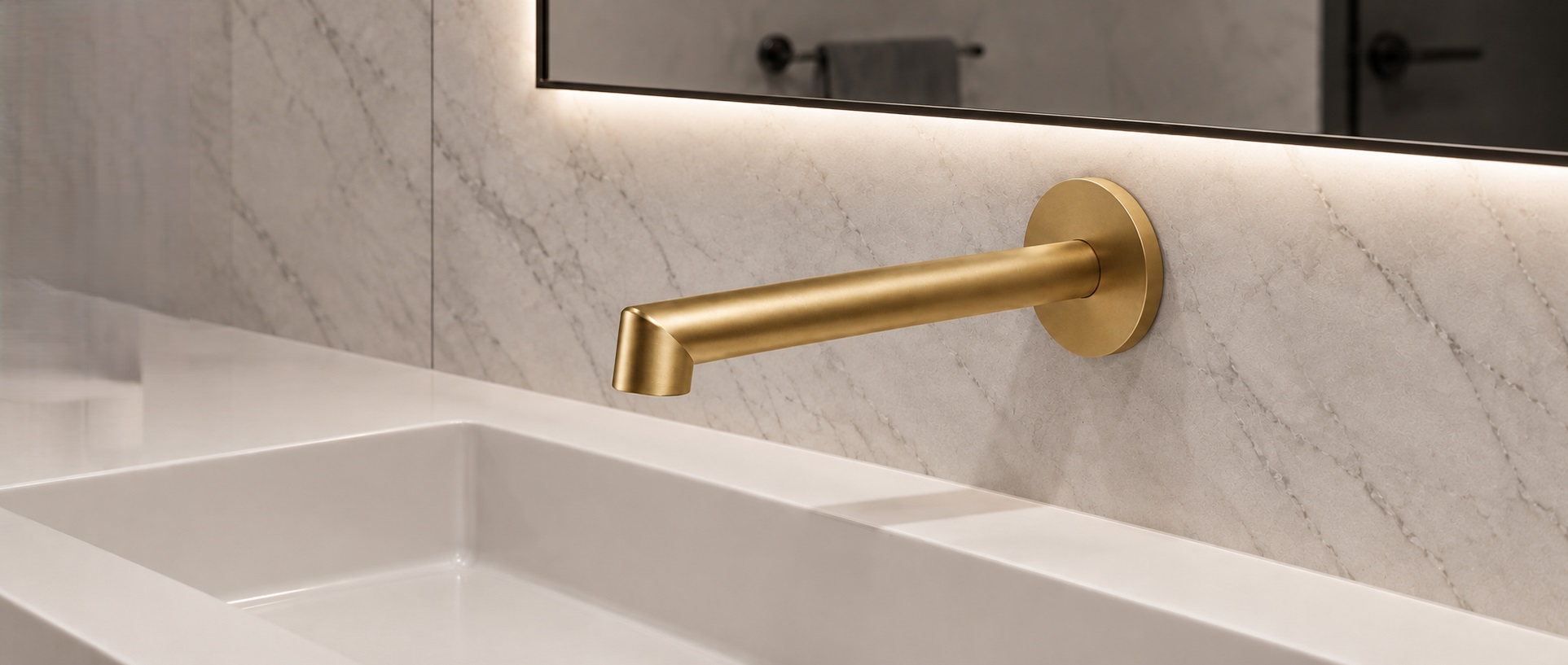

Closeout
Provide final product schedules, approved submittals, operating manuals, cleaning instructions, maintenance procedures, warranties, replacement-parts information, service contacts, and specified extra materials.
Final Bathroom Fixture Specification Checklist
✓ Section scope matches the fixture schedules and drawings.
✓ Each fixture has an exact type, configuration, finish, and mounting condition.
✓ Concealed components and required accessories are included.
✓ Flow, pressure, control, drainage, power, and access requirements are coordinated.
✓ Material and finish language is measurable and supported by samples.
✓ Submittal requirements identify the information needed for technical review.
✓ Rough-ins, openings, blocking, power, waterproofing, and access are coordinated.
✓ Installation and testing requirements address the complete installed condition.
✓ Cleaning and finish-care requirements match property operations.
✓ Closeout documents support maintenance, warranty, and future replacement.
Professional Review and Project-Specific Editing
This resource presents general specification-planning considerations for hospitality bathroom fixtures. It does not establish the final requirements for any individual project, jurisdiction, contract, installation, or product.
Final specifications should be prepared or reviewed by the responsible architect, plumbing engineer, interior designer, specification writer, code consultant, contractor, owner, and other qualified project professionals. Verify current product data, applicable standards, code editions, certifications, installation instructions, warranty terms, and project conditions before issuing construction documents.
BATHSELECT HOSPITALITY®
Coordinate Design Intent, Product Selection, Installation, and Long-Term Operations
BathSelect Hospitality® specification resources are developed to help architects, interior designers, plumbing engineers, contractors, procurement teams, developers, hotel operators, and facility professionals organize the technical information required for coordinated luxury bathroom projects.
|
|
Write Clear CSI Bathroom Fixture Specifications
BathSelect Hospitality® CSI bathroom fixture specifications help architects, specification writers, plumbing engineers, contractors, and procurement teams organize luxury hospitality fixture requirements within a coordinated project framework. Use these resources to define product scope, materials, finishes, performance criteria, flow requirements, valve configurations, rough-in conditions, installation responsibilities, testing, maintenance access, warranties, and closeout documentation. Coordinate broader project language through the
Hospitality Master Specifications, verify technical requirements with
plumbing engineer resources, and support reviews with
product submittal packages. Teams specifying guestroom and suite bathrooms can also review the
hospitality faucet series,
touchless faucet series, and
wall-mount shower systems.
Specification Guides →
Procurement Documents →
|
|
|
